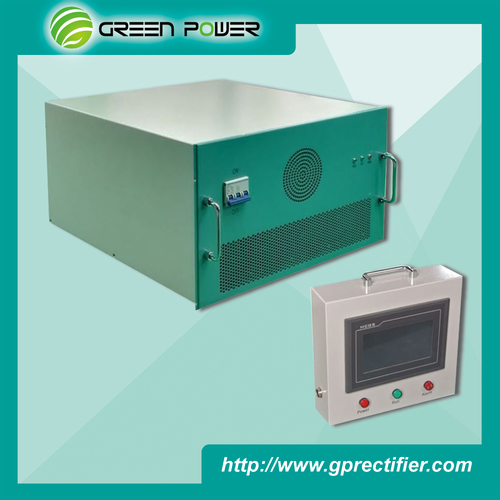

2000A 12V IGBT Electroplating Rectifier
- Minimum Order Quantity
- Unit of Measure
- Price Range
- 2450.00 - 3960.00 USD ($)
- Output Type
- Noise Level
- <65 db
- Single Phase
- Output Current
- 2000 Ampere (amp)
- Working Temperature
- 35-50 Celsius (oC)
- Product Type
- IGBT rectifier
- Output Power
- 2000 Ampere (amp)
- Input Voltage
- 340,380,415,440,480 Volt (V)
- IGBT,driving board,Control board,fan
- Storage Temperature
- 30-45 Celsius (oC)
The rectifier is suitable for Electroplating rectifier manufacturer DC 1000A 12V Power Supply
This rectifier is suitable for electrochemistry process, such as electroplating, electrolysis, anodizing, electrowinning, electrorefining etc. to provide stable DC power supply.
This rectifier adopts high frequency IGBT as semiconductor component and PWM modulation technology. It is modular structure design, easy to expand output current capacity, several rectifier modules could be connected in parallel and mounted in stack up to 20 modules to make more current single rectifier. has independent power modules, each module could output independently or output in parallel connection.
Input AC phase
Input line voltage(V)
0-100% of rated value
0-100% of rated value
- Module structure support direct parallel, current expanding
- Touch panel for display, operation
- Profibus, Profinet, Modbus, 4-20mA, 0-10V for remote control
- Fault auto diagnose and alarm
- Timer setting, auto OFF
- Process Step Setting, auto running
- Soft Start & Stop, time setting
- Save last time output setting,such as keeping 12V while starting
- Cabinet seal for water cooling version, avoid corrosion
- Experience in industrial applications more than 20 years, have rich experience of both technical design and onsite service.
- Mutual R&D with universities
- Patent and Software Copyright certification
- Self developed DSP(USA TI company's chip) digital controller
- Self developed and designed products
- Products design meet UL, CE , CSA and etc. standards
The ce certificate igbt rectifier for zinc plating line IGBT switch mode high frequency pulse rectifier adopts PWM technology realizing AC-DC conversion, 365 days continuously supply DC power for applied load.
The rectifier is made up with the following subassemblies:
- Diode bridge
- IGBT inverter H bridge
- High frequency transformer
- Secondary Schottky diodes
- Capacitors and inductors
- Control and protection circuit and devices
- Cooling circuit
- Remote control box(optional)
Reliable material and components
- Control board: DSP digital control, 20+ years high control accuracy, not like analog control, accuracy will reduce after some time.
- Cabinet: use 2mm thick strong cold-rolled steel plate or aluminum coated zinc plate.
- High frequency transformer: use Nanocrystalline material as core, it is high efficiency saving power, long time reliable running.
- Bus bar: use red copper bus bar, the purity of copper is 99.9%, not like others may use brass or aluminum inside.
- Cooling fan: use Taiwan or Japan brand high quality fan, with lifespan 100,000 hours under 25â„ƒ.
- Touch panel: control and display all parameters on one panel for local use or remote monitor, say goodbye to separate controls. easy for troubleshooting, while there is protection, it will show protection type automatically.
- Capacitor: Taiwan brand reliable Film Capacitors.
- IGBT: Germany or Japan brand.
- SMPS: use Taiwan brand MEANWELL.
- Rectifier diode module: China best quality brand, some other supplier use other lower quality brand.
- Current sensor: China best quality brand.
- Cables, wires, screws: use best quality.
Electroplating IGBT Rectifier Advantages
- Power saving because of GP IGBT rectifier has higher efficiency than SCR rectifier
- Modular structure, small size, standard module about 1/6 size of SCR/Diode rectifier
- Anti corrosion treatment:
- Have corrosion proof coating (powder coated cabinet) to protect from corrosive environment.
- All the PCB assemblies is humi- sealed/lacquer coated.
- Partially sealed designs protect critical electronics from harsh environment.
- Stainless steel bolts, nuts, screws etc are used.
- Wide range input voltage: +/-20% input voltage
- Reliable quality, 100% output 365 days, 24 hours non-stop continuous running
- Touch panel, protection automatic alarm and fault indication, history data record, output waveform
- Amperehour counting function
- Timer function
- Suitable for hot temperature environment
- Digital control to ensure control more than 15 years reliable
- RS485, 4-20mA, 0-10V PLC remote control interface
- Short circuit, output over current, over heat, IGBT driving fault protections
- Easy maintenance
- Have international distributors and agents in 17 countries
- Exported to USA, Canada,
- Germany, UK, India, Mexico, Korea, Chile, Korea etc. more
- than 40 countries
- English, Russian, Spanish 3 foreign languages support in
- Module structure
- DSP digital controller
- Trouch panel HMI
- Remote control box
