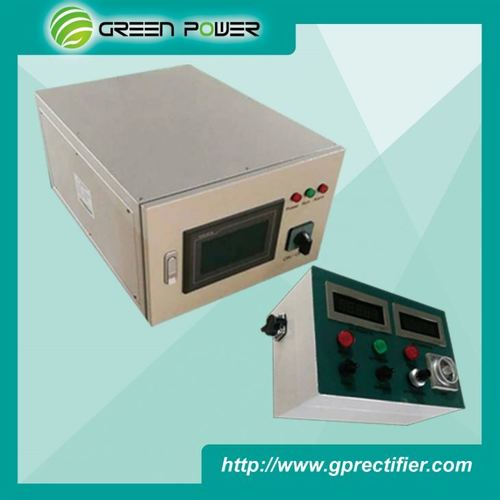

24KW Low Ripple Green Power Rectifier

24KW Low Ripple Green Power Rectifier
24KW Low Ripple Green Power Rectifier
Send Inquiry
Product Code : 72
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 1560.00 - 1750.00 USD ($)
Product Specifications
  • Product Type
  • Bridge Rectifier
  • Application
  • electroplating
  • Input Voltage
  • 340,380,415;440;480 Volt (V)
  • Output Current
  • 1000 Ampere (amp)
  • Output Voltage
  • 12 Volt (V)
  • Modular
  • Modular
  • Interface Type
  • RS485,0-10V;4-20ma
  • Operation Type
  • HMI
  • Weight
  • 75 Kilograms (kg)
  • Warranty
  • 1 year
Product Description

Our offered Low Ripple Green Power Rectifier is used for data processing center. Our data center Power Supply has been widely used for crypto-mining farm datacenter.


Technical parameters


AC input

3 phase 220V, 380V,480V, 600V(+-10%)

DC output DC output

0-12V, 0-2000A

Output frequency

50Hz/60Hz

Ripple

300mV

Regulation range:

0-100%

Accuracy

1%

Efficiency

>90%

Control mode

constant current /constant voltage mode

Cooling mode:

Water cooled/ Force Air Cooling

Remote control

RS485 remote control (Modbus), Profibus, Profinet, Ethernet(TCP/IP) etc.


Why Choose US


  • Products high reliability, European level quality

  • First class advanced technology, DSP digital controller

  • Perfect matching process demand, excellent performance

  • Competitive price than Europe and USA brands

  • Easy operation by touch panel and remote PLC control through communication

  • Quick troubleshooting and repair for shorten up stop time


Working Condition


  • Power requirement: AC 380V+/-10%, three phase, and meet national electricity quality standard

  • Used indoors, ambient temperature: 0℃~+40℃

  • Relative humidity: ≤90% (relative to 20±50)

  • Elevation: less than 2,000 meters

  • There should not be excessive amount of explosive, dust, and corrosive gas in the air

  • The installation place should be without any severe vibration, the vertical gradient should not exceed 5%.

  • The seismic intensity of the installation site should be less than 7 on the Richter scale

  • Saturated vapor pressure: daily average value is less than 2.2×10-3M pa, monthly average value is less than 1.8×10-3Mpa

Trade Information
  • FOB Port
  • Shanghai,Tianjing,beijing,Guangzhou
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 300 Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Polywood package
  • Main Export Market(s)
  • Middle East, Western Europe, South America, North America, Asia
  • Certifications
  • CE
