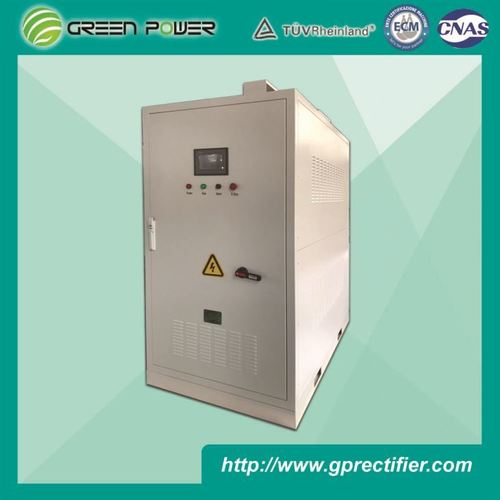

350A 350V AC To DC Plasma Heating Rectifier

350A 350V AC To DC Plasma Heating Rectifier
350A 350V AC To DC Plasma Heating Rectifier
Send Inquiry
Product Code : 65
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 1000.00 - 1350.00 USD ($)
  • Price
Product Specifications
  • Application
  • electroplating
  • Rated Current
  • 12 Volt (v)
  • Output Type
  • Single
  • Current Range
  • 1000 Ampere (A)
  • Phase
  • Single Phase
  • Noise Level
  • <65 db
  • Working Temperature
  • 35-50 Celsius (oC)
  • Output Current
  • 1000 Ampere (amp)
  • Product Type
  • IGBT rectifier
  • Output Power
  • 12KW Watt (w)
  • Input Voltage
  • 340,380,415,440,480 Volt (V)
  • Efficiency
  • 90%
  • Material
  • IGBT,driving board,Control board,fan
  • Storage Temperature
  • 30-45 Celsius (oC)
  • Weight
  • 70 Kilograms (kg)
Product Description

This IGBT AC to DC Plasma Heating Rectifier is suitable for DC (Direct Current) non-transfer arc and DC transfer arc.

Suitable plasma torch heating rectifier: Plasma technology is positioned in forefront of advanced environmental protection technology, it is the most reliable measure to deal with all kinds of solid waste like city garbage, medical and electronic hazardous waste, industrial and hazardous waste, sewage sludge and smelting slag and tailings mining etc.

Difficult points of plasma heating application rectifier

  • Multiple plasma load type: From resistive, inductive, capacitive, resistive-capacitive, resistive-inductive load, power supply need to adapt to these load.

  • High voltage impulse to power supply: Power supply should withstand this impulse it need special circuit design.

  • Plasma negative resistance characteristic: Power supply should match the load feature.

What is special in Green Power Rectifier?

  • High quality

  • Europe level reliability with much cheaper price

  • Experience of plasma torch load

  • Good solution for the plasma application

  • Circuit design can withstand high voltage

  • Easy remote control, support 4-20mA/0-10V analog signal + dry contacts, communication RS485 (MODBUS)

  • Touch panel HMI

  • Excellent workmanship

  • Custom design available

Plasma torch heating rectifier

Main specification

  • Input voltage: 380V, 480V, 690V AC 3 phases

  • Output: 200Vdc*500A (example)

  • Control method: controlled by current, constant current mode

  • Working mode: Continuous duty 24/7

  • Cooling method: Air cooling/water cooling

  • Local control by touch panel

  • Remote control through 4-20mA or 0-10V signal and dry contacts or MODBUS

  • Power factor: 0.9 or better

  • ITHD: less than 10%

  • Ripple: better than 5%

  • Efficiency: ≥90% at full load

  • Overload ability: 110%, transient overload 150% not exceeding 30s

  • Voltage withstands ability: Can withstand 4500V, 50 kHz above high frequency high voltage impulse for 10s

  • Has soft start function

  • Over voltage, over current, short circuit, over heat etc

  • Alarm and protections, displayed on touch panel

  • Accuracy: <1%

  • Ambient temperature: Max. 40℃

  • Elevation: <4000m

R&D ability

  • Self developed control board

  • Self designed products

  • Self electrical engineer, mechanical design engineer, software engineer

  • More than 20 years of experience in power electronics engineering

Manufacturing

  • 16000 m2 for headquarter, workshops and office

  • Capacity 1000 sets/month

  • 5S management for production

  • QC rather reliable

Trade Information
  • FOB Port
  • Shanghai,Tianjing,beijing,Guangzhou
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 300 Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Polywood package
  • Certifications
  • CE
