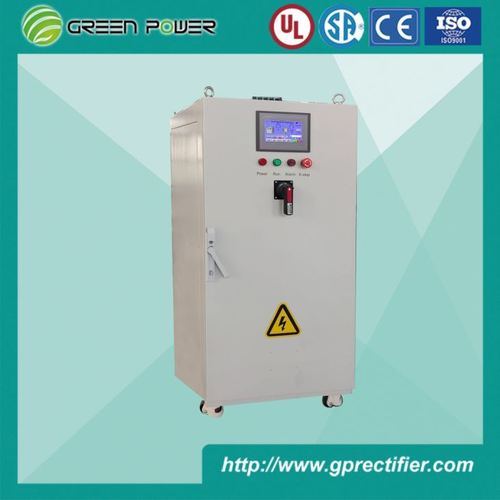

5000A 12V Switch Mode Power Supply

5000A 12V Switch Mode Power Supply
5000A 12V Switch Mode Power Supply
Send Inquiry
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 1580.00 - 1800.00 USD ($)
  • Price
  • FOB price USD ($)
Product Specifications
  • Phase
  • Single Phase
  • Working Temperature
  • 35-50 Planck temperature (Θ)
  • Noise Level
  • <65 db
  • Application
  • electroplating
  • Output Type
  • Single
  • Output Power
  • 1500 Ampere (amp)
  • Input Voltage
  • 340,380,415,440,480 Volt (V)
  • Efficiency
  • 90%
  • Storage Temperature
  • 30-45 Planck temperature (Θ)
  • Weight
  • 70 Kilograms (kg)
Product Description

Electrolysis for non-ferrous metal such as magnesium, zinc, aluminum, lead, copper, manganese and dioxide manganese; silver, gold, and other metal smelting; we offer rare earth smelting; carbide, diamond smelting; potassium electrolysis, salt water, made caustic soda, sodium; potassium chloride electrolysis potassium chlorate, refractories electric heating, as well as other types of high-power power supply.


Application


This is rectifier is used for 5000A 12V switch mode power supply water cooling for plating electrolysis anodizing water treatment.


Our IGBT rectifier compared with SCR rectifier, with typical advantages


Item

Oil cooled SCR Rectifier

Water / air cooling IGBT rectifier

Rated output power

1000A*12V=12kW

Annual working hours

6300hours/year (consider21hours/day,300days/year)

Assuming efficiency at rated output

75%

90%

Power consumption/year

12/0.75*6300=100,800kwh

12/0.9*6300=84,000kwh

Saved power in a year

100,800-84,000=16,800kwh

Saved electricity bill (5Rupee/hour)

16,800*5=84,000Rupees

Saved power percentage

16,800/100,800=about17%


  • Power saving about 17% due to higher efficiency

  • Less affected by power fluctuation as Indian AC input power is not stable

  • Same high reliability as SCR rectifier, long time 24/7 continuous running

  • Customer feedback for plating quality by IGBT rectifier is better than that of SCR rectifier

  • Compact size, it is only about 1/6 volume from SCR rectifier for same DC output power

  • Cooling method: Water cooling


Technical Parameters


1. AC Input

1.1

Input AC phase

Three phase

1.2

Input line voltage(V)

380V+/-10%

1.3

Input Frequency(Hz)

50Hz/60Hz

2. DC Output

2.1

Rated Output

5000A/12V

2.2

Output mode and range

Constant Current, 0-100% of rated value

Constant Voltage, 0-100% of rated value

2.3

Duty

100% full load

2.4

Accuracy

<1%

3. Electrical Features

3.1

Application

Electrochemistry

3.2

Regulation mode

IGBT PWM

3.3

Power Factor(Full load)

≥0.93

3.4

Cooling Method

water cooling

3.5

IP degree

IP30,please specify if you require higher

3.6

Insulation Grade

B, please specify if you require higher

3.7

Working Mode

Continuous

3.8

Alarm type

Audible and visual alarm

3.9

Water flow meter dry contact control

Contact closed, rectifier on
Contact open, rectifier off


Protections


The rectifier provides below mentioned protections to the rectifier and system


Protection type

Protection value

Rectifier action

Driving protection

/

Alarm, rectifier stop immediately

Over heat protection

85℃

Alarm

Rectifier stop

Over current protection

1800A

Alarm

Rectifier stop


Trade Information
  • FOB Port
  • Shanghai,Tianjing,Beijing,Guangzhou
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 700 Per Month
  • Delivery Time
  • 6-8 Week
  • Packaging Details
  • Polywood package
  • Main Export Market(s)
  • Africa, Middle East, South America, North America, Central America, Australia, Asia
  • Certifications
  • CE,ISO9001
