8000A 580V 4.64MW PV Solar Hydrogen Electrolysis Convertor

19800.00 - 23560.00 USD ($)/Set

Product Details:

  • Output Current 20000 Ampere (amp)
  • Current Range 20000 Ampere (A)
  • Application hard chrome plating
  • Output Type Single
  • Phase Single Phase
  • Noise Level <65 db
  • Working Temperature 35-50 Celsius (oC)
  • Supply Ability : 200 Set Per Month
  • Click to view more
X

Price And Quantity

  • 19800.00 - 23560.00 USD ($)/Set
  • 3 Set

Product Specifications

  • hard chrome plating
  • 24KW Watt (w)
  • 20000 Ampere (A)
  • IGBT,driving board,Control board,fan
  • 20000 Ampere (amp)
  • 90%
  • 35-50 Celsius (oC)
  • 340,380,415,440,480 Volt (V)
  • IGBT rectifier
  • 30-45 Celsius (oC)
  • <65 db
  • Single Phase
  • Single

Trade Information

  • Shanghai,Tianjing,beijing,Guangzhou
  • Letter of Credit (L/C)
  • 200 Set Per Month
  • 6-8 Week
  • Contact us for information regarding our sample policy
  • Polywood package
  • Africa, Middle East, Western Europe, Eastern Europe, North America, Asia
  • CE

Product Description

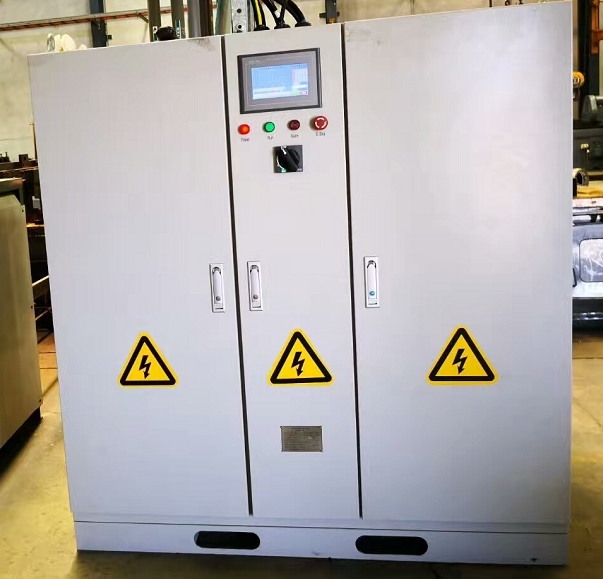

Our offered DC Convertor 4.64 MW is used for PV Solar system for water electrolysis for producing hydrogen. This is a professional technical solution with high quality for you manufactured by our strong engineering team.

Green Power Hydrogen Rectifier Advantages

  • High reliability 24 hours continuous running
  • High accuracy +/-0.5%
  • High efficiency >90%
  • PF >0.94
  • THDi <15%
  • More cost effective than Europe/USA brands
  • DSP Control: Digital programmable
  • High Power: kW-MW available
  • Strong Engineering team working for you 16h/day online support

Solar Hydrogen Electrolysis Convertor Main Parameter

Parameter Name

Parameter

Input voltage

DC

Rated output power

10kW-5MW

Rated output DC voltage

Custom design

Rated output DC current

Custom design

Output DC current range

DC 0-100%

Transformer cooling

Dry type(air cooled)

Insulation grade

B

Transformer installation place

Indoor, inside or outside of power supply cabinet

Transformer

Adopt top quality cold-rolled grain oriented silicon steel sheet

with high permeability and low loss

Tap changer

Available

Circuit configuration

3 phase bridge or double star

Output pulse

6 pulse or 12 pulse

Whole system efficiency

≥90%

Power factor

≥0.9 at rated output

Constant current accuracy

≤±0.5%

Constant voltage accuracy

≤±0.5%

Control mode

Constant current, constant voltage

Current Ripple

≤5%

Harmonics TDHi

Custom design

Cooling method

Water cooled or forced air cooling

HMI

Color touch panel

Remote control interface

RS485, Profibus, Profinet

Protections

Grounding detection and grounding fault alarm

Thyristor RC snubber

Fast action fuses

Over heat

Output over voltage

Output over current

Water pressure

Water temperature

Painting

Powder coating

RAL7035

Protection Grade

IP44 for water cooling, IP32 for air cooling

or custom design

Mechanical Structure

Divided into power compartment and control compartment

Input from top, output from side, water interface from side

If customer has requirement, please mention with order

Main power

Metal cabinet
