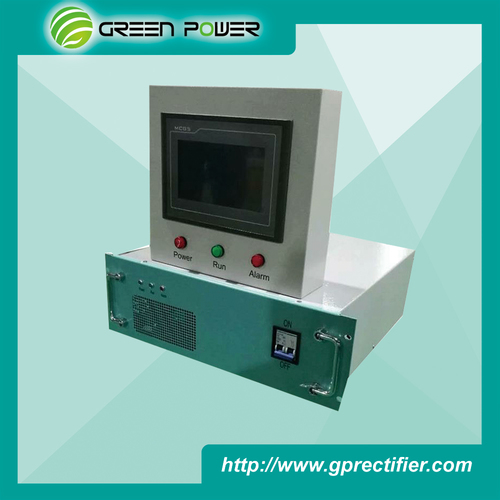

90A 60V Water Electrolysis Rectifier

90A 60V Water Electrolysis Rectifier
90A 60V Water Electrolysis Rectifier
Send Inquiry
Product Code : 90A 60V
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price
  • 650-810 USD ($)/Set
Product Specifications
  • Output Type
  • Single
  • Phase
  • Single Phase
  • Noise Level
  • <65 db
  • Output Current
  • 200 Ampere (amp)
  • Application
  • electroplating
  • Product Type
  • Rectifier
  • Output Power
  • 200 Ampere (amp)
  • Input Voltage
  • 415 Volt (V)
  • Efficiency
  • 90%
  • Material
  • IGBT,driving board,Control board,fan
  • Storage Temperature
  • 35-45 Celsius (oC)
Product Description

The high frequency switching Water Electrolysis Rectifier has three phases AC input that is converted to DC through rectification and filter, and then DC voltage is transformed to DC output through phase shift full bridge PWM DC/DC converter. The power supply has independent power modules and each module could output independently or output in parallel connection.

Full Specifications

This rectifier provides a stable DC power supply. Our electroplating Power Supply has been widely used in the industry. One power supply work for many circuit boards.

Working principle

3 phases AC input is converted to DC through rectification and filter and then DC voltage is transformed to DC output through phase shift full bridge PWM DC/DC converter.

Green Power Plating Rectifier Advantages

  • Output accuracy <1%

  • Efficiency >90%, energy saving

  • DSP digital control, reliable and stable performance for more than 20 years

  • DSP control with advantage of accuracy as high as 1%

  • Fast response speed, software programmable, etc

  • High performance price ratio, much cheaper than European brands, we have the higher level of technology and same level quality, data center Power Supply one module with air cooling could be up to 30kW

  • Modular design, compact size, less footprint, easy for capacity enlarging, shipping, installation and maintenance, etc

  • Touch panel for easy data setting, data record, data download and auto protection display

  • 1000A 12V adjustable electroplating switch mode dc power supply main components

  • Diode Bridge

  • IGBT inverter H Bridge

  • High frequency transformer

  • Secondary Schottky diodes

  • Capacitors and inductors

  • Control and protection circuit and devices

  • Cooling circuit

Working Condition

  • Power requirement: 3 Phase-415 VAC+/-10%, 50Hz, 3 phase 4 line, 3 phase imbalance less than 5%, and meet national electricity quality standard

  • Used indoors, ambient temperature: 0℃~+40℃

  • Relative humidity: ≤90% (relative to 20±50℃)

  • Elevation: less than 2,000 meters

  • There should not be excessive amount of explosive, dust, and corrosive gas in the air

  • The installation place should be without any severe vibration, the vertical gradient should not exceed 5%

  • The seismic intensity of the installation site should be less than 7 on the Richter scale

  • Saturated vapor pressure: daily average value is less than 2.2x10-3M pa, monthly average value is less than 1.8x10-3Mpa

Trade Information
  • FOB Port
  • Shanghai,Tianjing,beijing,Guangzhou
  • Supply Ability
  • 580 Set Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Polywood package
  • Certifications
  • CE
