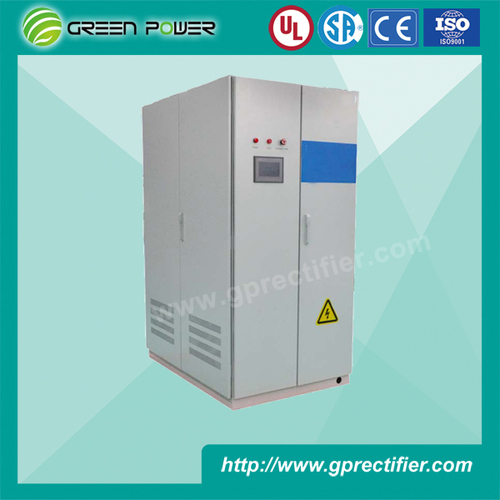

AC Three Phase Power Supply

AC Three Phase Power Supply
AC Three Phase Power Supply
Send Inquiry
Product Code : 60
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • Price Range
  • 7900.00 - 9350.00 USD ($)
Product Specifications
  • Current Range
  • 5000 Ampere (A)
  • Rated Power
  • 10KW
  • Phase
  • Single Phase
  • Output Current
  • 5000 Ampere (amp)
  • Working Temperature
  • 35-50 Celsius (oC)
  • Noise Level
  • <65 db
  • Output Type
  • Single
  • Application
  • water treatment,electroplating
  • Product Type
  • Rectifier
  • Output Power
  • 5000 Ampere (amp)
  • Input Voltage
  • 340,380,415,440,480 Volt (V)
  • Efficiency
  • 90%
  • Material
  • IGBT,driving board,Control board,fan
  • Storage Temperature
  • 30-45 Celsius (oC)
  • Weight
  • 135 Kilograms (kg)
Product Description

Technical Parameters

Customer proved, using our IGBT switch mode power supply unit:40% less processing time 20% above better plating/electrolysis processing quality

Electroplating rectifier 300a main parameters:

Item

Reference value

Input line voltage(V)

380V 415V 480V 220V

Voltage Fluctuating Range

±10%

Input Frequency(Hz)

50Hz/60hz

Highest ambient temperature

35°C 40°C 45°C

Application

Electroplating electrolysis anodizing

heating others

Polarity Reverse Required

Yes No(default)

Rated Output Current(A)

5000A (0-1000A adjustable)

Rated Output Voltage(V)

10V (0-12V adjustable)

Rated Output Power(kW)

36kW

Power Efficiency(Full Load)

90%

Accuracy

<0.5%

Power Factor(Full load)

0.93

Cooling Method

Water cooling Forced air cooling

Timer

Needed Not needed(default)

Working Mode

Continuous

Protection Function

Input voltage protection, cooling water protection,

overheat, output over current, output over voltage

Local control and display

Touch screen Digital meters&buttons

Don't need local control

Remote control and display

Remote control box External SPS or IPC

Don't need remote control

Communication Protocol

Profibus Profinet Modbus 4-20mA/0-10V


Advantage

Rich experience for industrial applications Mature and advanced technology, R&D of power supply for 20 years Europe quality, high reliablity and high stability Reliable, efficient and robust, Maximum efficiency and reliability and trouble-free integration, give you technical performance that boosts productivity and allows a high return on investment on your plant High performance price ratio, optimised power supply design& reasonable power supply price Product easy operation and quick troubleshooting Efficient service



We could bring you Europe quality&China price.


  • First Class Advanced Technology, DSP digital controller;
  • Perfect matching process demand, excellent performance;
  • Competitive price than Europe and USA brands;
  • Easy operation by touch panel, remote PLC control through communication;
  • Quick troubleshooting and repair to shorten stop time;

Details

DC output

600A

700A

1000A

1500A

2000A

3000A

5000A

6000A

8000A

10000A

12000A

15000A

20000A

Others

12V

Input AC 380V, 220V, 415V, 480V

15V

Water/Forced Air Cooling

20V

Reversing Polarity

60V

Local/Remote Control

100V

CC/CV

0thers

Timer

Trade Information
  • FOB Port
  • Shanghai,Tianjing,beijing,Guangzhou
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 100 Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Polywood package
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, South America, North America
  • Certifications
  • CE
