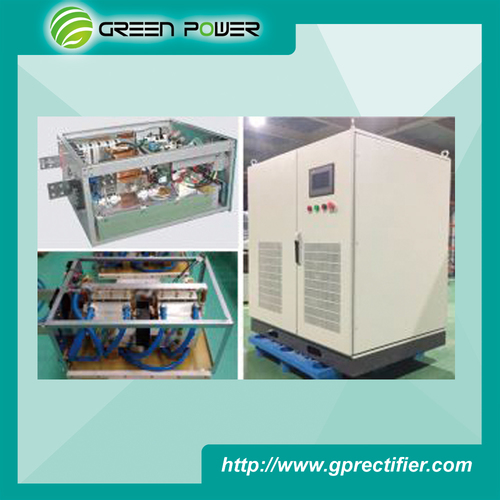

Aluminum Coloring AC Power Supply

Aluminum Coloring AC Power Supply
Aluminum Coloring AC Power Supply
Send Inquiry
Product Code : 34
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 1 Set/Sets
  • Price Range
  • 9860.00 - 12550.00 USD ($)
Product Specifications
  • Application
  • copper electrowinning
  • Noise Level
  • <65 db
  • Working Temperature
  • 40-60 Celsius (oC)
  • Rated Current
  • 5000 Ampere (amp)
  • Output Current
  • 5000 Ampere (amp)
  • Phase
  • Single Phase
  • Product Type
  • Rectifier
  • Output Power
  • 5000 Ampere (amp)
  • Input Voltage
  • 380-480 Volt (V)
  • Efficiency
  • 90%
  • Storage Temperature
  • 35-45 Celsius (oC)
Product Description

This coloring process applies AC or DC/AC method; just define the color and the process time. Power supply for electrolytic coloring of Aluminum, it is the energy saving technology that is combined with an easy to operate controller, which ensures uniform coloring results for the processes of Electrolytic coloring of aluminum using the two-steps process.

Product Details

Application of Aluminum Coloring AC Power Supply

It is suitable for coloring stainless steel color, champagne color, etc, light and deep color such as deep bronze, pearl black and titanium gold, golden brown, gold, etc.

Technology Advantages of Aluminum Coloring AC Power Supply

  • Can preset 20 different colors process with color and process time setting
  • Reproducibility of the coloring process
  • Integrated coloring and re-coloring function
  • Pre-impregnation time, DC time, coloring time, color compensation time can be adjusted independently and each process time can also be adjusted
  • DC and AC operation
  • Microprocessor controlled
  • Mains voltage fluctuations do not affect the coloring result
  • 3 phase mains supply is used, so no unbalanced mains load with normal 2 phase circuits
  • Electricity energy cost saving and coloring time is shortened by up to 50 percent integrated with voltage regulator
  • Only use thyristor without voltage regulator and the output AC sine wave may not be continuous that may not be able to meet the color requirement
  • Ampere-hour and pre-selection counter
  • High control accuracy
  • Soft-start functions
  • When the coloring time is up the alarm will beep with light

Technical specifications of Aluminum Coloring AC Power Supply
  • Output currents from 500A-20,000A
  • Output voltage 22V, 25V
  • Regulation error < ±1% in relation to nominal DC value
  • Efficiency > 87%
  • Voltage regulation: Thyristor + voltage regulator
  • Input Voltage: AC 3 phase, 380V, 220V, 415V, 480V, 50/50Hz
  • Output type: AC or AC+DC
  • Output Waveform: DC, AC Symmetrical sine wave or AC Asymmetrical sine wave
  • Cooling method: Water cooling or air cooling
  • Fully digital control system
  • Touch screen control
  • Optional color: 20 colors
  • Equipped with remote central control box

Trade Information
  • FOB Port
  • Shanghai,Tianjing,beijing,Guangzhou
  • Payment Terms
  • Letter of Credit (L/C)
  • Supply Ability
  • 500 Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Polywood package
  • Main Export Market(s)
  • Africa, Middle East, South America, North America, Asia
  • Certifications
  • CE
