Applications

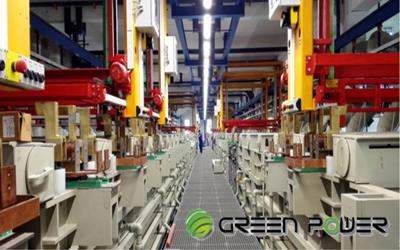

Introduction Of Electroplating Rectifier

Electroplating are widely used for metal and plastic plating, rack plating, barrel plating and continuous plating, plating types include:

  • Copper Plating
  • Nickel Plating
  • Zine Plating
  • Chrome Plating And Hard Chrome Plating
  • Tin Plating
  • Galvanizing
  • And Many Others


We offer high reliability, high accuracy, high efficiency, high frequency IGBT based rectifier for electroplating industry.

Compact size, modular based, support convenient current expansion through modules parallel connection.

We also offer multiple remote control communication options.

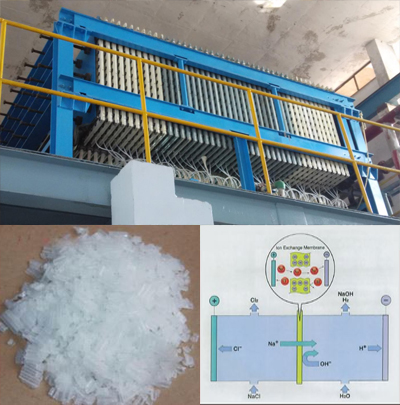

Caustic Soda Electrolysis

Rectifier thyristor technology for producing sodium hydroxide (NaOH) and chlorine gas (Cl2) from the brine makes use of electrolysis method, Electrolysis of ion-exchange membrane caustic soda, chlorine gas is generated at the anode and caustic soda is made and hydrogen gas is generated simultaneously at the cathode, for this CA (Chlor-Alkali) process, high-capacity special power supply is required for the purpose of effective electrolysis.

And the power supply is also used for electrolysis of potassium hydroxide, copper foil, salt solution, seawater desalination Electrodialysis(ED) etc.

Water Treatment Electrolysis

  • Same reliability as SCR rectifier, long time 24 hours continuous running
  • Power saving at least 15% than SCR rectifier
  • Less affected by power fluctuation, 100% output, don't need extra capacity:
  • IGBT rectifier adopts AC-DC-AC-DC topology, 3 phase AC is firstly converted to DC, which has capacitors for energy charging and discharging, it will suppress power fluctuation. So rectifiers don't need bigger capacity than actual use.
  • SCR rectifier doesn’t have energy buffer function, it is affected directly by the grid power fluctuation, so it always keep much extra capacity.
  • Less plating time needed, customer feedback 40% shorter time needed for plating
  • Compact size, much less size and weight of SCR rectifier, don't need forklift
  • Low Pollution to grid, power factor>0.93
  • Lower cost

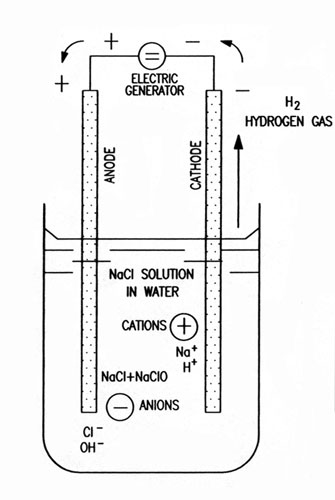

Seawater Chlorination

Electrochlorination Technology Is For The On Site Production Of Sodium Hypochlorite Solution By Electrolysis From Seawater Or Brine. This Technology Is Used For Biofouling Control In Power Plants, Liquefied Natural Gas Plants (LNG) Terminals, Cooling Towers Marine Ballast Water Treatments, Desalination Facilities And All Coastal Installations Using Seawater For Cooling Or Other Process Needs.

The electrolysis process takes place when, applying a difference of electric potential to an acqueos solution of acids, bases, salts, a circulation of D.C. current strictly related to mass transfer phenomena is created in the solution itself.

The driving means of the electric charges are not the molecules neither of the solvent nor of the dissolved compound, but only parts of themselves.

Acid, bases and salts, when dissolved in definite solvents, have their molecules divided in two parts and, after the appling of D.C. current, one part (anion) migrates and deposits itself at the positive electric polarity or anode, whilst the other (cation) at the negative electric polarity or cathode. These parts of the molecule can be atoms or groups of atoms.

This is the separation that occurs, for instance, to the atoms of Chlorine and Sodium or Chlorine and Potassium when dissolved into their conductive electrolytic solution in which they are contained in ionic form : a consequence of what described before is, for example, the Sodium Hypochlorite production in the electrochemical industry.

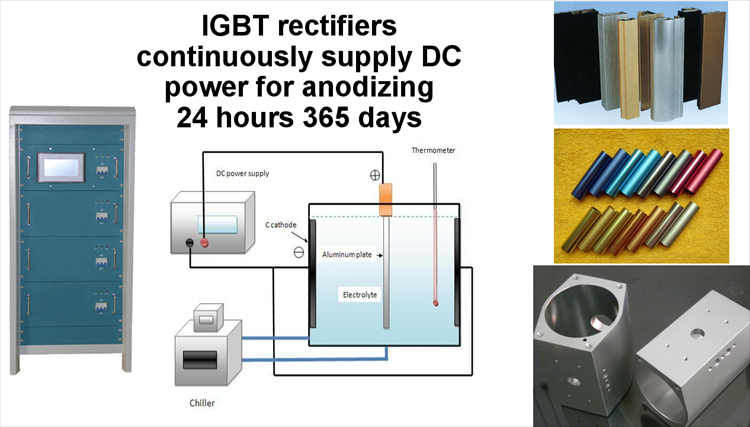

Aluminum Anodizing

1. Suitable Anodizing Types:

The IGBT rectifier is suitable for aluminum general decorative anodizing and hard anodizing.

Why Not To Use Scr Rectifier Instead Of IGBT Pulse?

  • Less anodizing time needed approximately 40% less
  • More power saving up to 15 % than scr rectifiers
  • Reliability is same as scr rectifier, continuous running up to 24 hours
  • Efficient high frequency pulse output is good for anodizing process, get perfect anodizing quality.
  • Less affected by power fluctuation, don’t need extra capacity.
  • Lower cost
  • Low pollution to grid.
  • Much less size and weight of scr rectifier, compact size, high power density.

What Is Special About Green Power Anodizing Rectifier?

  • High current, with high power design and manufacture experience like, 10000 24v available.
  • Modular stacked structure
  • Compact size, occupied less surface area, modular could be stacked
  • European level reliability with much cheaper price than europe.
  • Automatic anodizing time and auto cut off when time is up
  • Have experience of hard anodizing rectifier with different output waveform and high voltage output.
  • Easy maintenance, replacement install direct plug in and out.
  • Direct replace spare modular for easy repair
  • Short lead time, standard design
  • Flexible current expansion: get different current output
  • High reliability: one module break down won’t affect other, whole rectifier continue running.
  • Fast response time, high accuracy for more than 15 years, digital controlled
  • Automatic self fault diagnose and display, for easy troubleshooting
  • Easy remote control
  • Excellent workmanship
  • Fleecy start/stop available on request
  • Easy to maintain and troubleshooting
  • Support different languages, record history data, touch panel for easy hmi
  • Custom design available, hard anodizing output waveform.
  • Local service in india, germany, iran, korea, united kingdom etc.

Typical Anodizing IGBT Rectifier Types

Decorative anodizing rectifier:

  • Current: 2000A, 3000A, 5000A, 10000A, 12000A, 15000A, 20000A
  • Voltage: 18V, 20V, 24V

Hard anodizing rectifier:

  • Current: 500A, 1000A, 1500A, 2000A, 4000A
  • Voltage: 60V, 90V, 120V.
  • Hard Anodizing Output Waveform

Main Specification

  • Input voltage: 3 phase 4 line, 220V, 380V, 415V, 480V
  • Input voltage protection range: +/-10%
  • Rated output current: 1000A-20000A
  • Rated output voltage: 18V-200V
  • Cooling method: Water cooling, forced air cooling(smaller power)
  • Power factor:>0.93
  • Efficiency: >90% at 24V
  • Regulation range: 0-100%
  • Duty cycle: 100% continuous running
  • Control mode: constant voltage, constant current
  • Accuracy: <1%
  • Ambient temperature: Max. 40℃
  • Elevation: <4000m

Electrowinning

Introduction Of Electrowinning


Electrowinning well known as electroextracrtion. It is the electrodeposition of metals from their ores that been put in solution by process known as leaching. Electrorefining uses a similar process to remove impurities from metal. These both process use electroplating on grand scale and are important techniques for the economical as well as straightforward purification of non ferrous metals. The concluded product known as electrowon.

Suitable Electrowinning Metals

  • Chromium, Zinc, Gold, Silver, Lead, Copper, Manganese, And Alkali Metal And The Rare Earth.

Electrowinning SCR Rectifier Range

  • DC rated Output current: 1000A-50kA
  • DC rated Output voltage: 40V-1000V

Turn-Key Solution Scope Of Supply:

  • DC sensor
  • DC switch
  • 20' or 40' Container(optional)
  • Industrial air conditioner(optional if needed
  • SCR Rectifier
  • Water chiller(if water cooling
  • Transformer

Why Green Power Rectifier Only?

  • Digital Control
  • High Accuracy
  • High Reliability
  • Provide Turn-Key Solution
  • Mature Technology, Other Successful Application
  • Digital Control
  • Touch Panel HMI
  • Low Output Ripple
  • High Efficiency

Main Parameters

  • Noise: ≤60dB(distance 1 meter)
  • Protections: DC over voltage, DC overload/over current, overheat, fuse protection, cooling water pressure, cooling water temperature etc.
  • Output regulation range: 0-100% continuous adjustable
  • Cooling method: water cooling/air cooling
  • Ripple:<5%
  • Power factor: ï¹¥0.92(α<10°)
  • Constant current accuracy: better than ±0.5%
  • Overload ability: 105% continuous, 150% 1 minute

Electrolysis Rectifier

Appropriate Electrolysis Types
  • Electrolysis of ion exchange membrane causticsoda (NaOH, sodium, hydroxide, potassium hydroxide, copper foil, salt.
TYPES OF ELECTROLYSIS RECTIFIERS
  • SCR rectifier: suitable for very high power electrolysis
  • IGBT rectifier: suitable for lower power of electrolysis
Output Range Of Electroysis Rectifier
  • DC rated Output current: 1000A-50kA
  • DC rated Output voltage: 40V-1000V
Turn-key solution scope of supply:
  • DC sensor
  • DC switch
  • Water chiller
  • Transformer
  • SCR rectifier
  • Industrial air conditioner(optional)
  • 20' or 40 Conditioner (optional)
Benefits Of Green Power Rectifier
  • High Accuracy
  • High Reliability
  • Low Output Ripple
  • Digital Control
  • Touch Panel Hmi
  • High Efficiency
  • Mature Technology, Many Successful Application
  • Provide Turn Key Solution
Main Parameters
  • Ripple:<5%
  • Noise: ≤60dB(distance 1 meter)
  • Overload ability: 105% continuous, 150% 1 minute
  • Cooling method: water cooling/air cooling
  • Output regulation range: 0-100% continuous adjustable
  • Constant current accuracy: better than ±0.5%
  • Protections: DC over voltage, DC overload/over current, overheat, fuse protection, cooling water pressure, cooling water temperature etc.
  • Constant current accuracy: better than ±0.5%
  • Power factor: ï¹¥0.92(α<10°)

DC Arc Furnace

Introduction Of Transformer Rectifier For DC Arc Furnace

Silicon Control Rectifier (SCR) or Insulated Gate Bipolar Transistor (IGBT) based high power transform rectifier for DC arc furnace are used for different DC furnace where DC power supply is needed, including all types of, vacuum are furnace, plasma furnace, vacuum resistance furnace etc. for melting niobium, zirconium, titanium, high carbon ferrochrome, tungsten, vanadium, molybdenum, metals difficult to dissolve, steel alloys, high temperature alloys and many more.

We are prestigious world wide known for manufacturing arc furnace rectifier power supply, with professional designer team. Successfully we are ruling over world market for supplying superior quality heating rectifier system. And successfully exporting to Canada, Pakistan and any other. Apart, from this countries like china used these equipment in aerospace also.

Plasma Torch IGBT Power Supply

Appropriate plasma touch
  • IGBT power supply is suitable for DC non transfer arc and DC transfer arc.
Disadvantages of plasma application power point
  • Multiple plasma load types from resistive, inductive, resistive-capacitive, inductive, resistive-inductive, power supply need to adapt to these load.
  • High voltage impulse to power supply: power supply should withstand this impulse, need specified circuit design.
  • Plasma negative resistance property: power supply should match this load feature.
What is unique about green power rectifier?
  • We offer custom designs
  • easy remote control, support 4-20mA/0-10V analog signal+dry contacts, communication RS485(MODBUS)
  • outstanding workforce
  • touch panel HMI
  • High voltage withstand circuit design, good solution to the plasma application.
  • Experience of plasma torch load.
  • High quality, europe level relibilty with much cheaper price than europe
Main specification
  • Cooling method: air cooling/water cooling
  • Control method: controlled by current, constant current mode
  • Efficiency: ≥90% at full load
  • Accuracy: <1%
  • Elevation: <4000m
  • Ripple: better than 5%
  • Input voltage: 380V, 480V, 690V AC 3 phases
  • Overload ability: 110%, transient overload 150% not exceeding 30s.
  • Ambient temperature: Max. 40℃
  • Ambient temperature: Max. 40℃
  • ITHD: less than 10%
  • Power factor: 0.9 or better
  • Voltage withstand ability: could withstand 4500V, 50kHz above high frequency high voltage impulse for 10s.
  • Has over voltage, over current, short circuit, over heat etc. alarm and protections, displayed on touch panel.
  • Remote control through 4-20mA or 0-10V signal and dry contacts or MODBUS
  • Output: 200Vdc*500A(example)
  • Local control by touch panel
  • Working mode: continuous duty 24 hours per day, 7 days per week.

Rectifier for waste water treatment

  • Suitable waste water treatment:
  • waste water electrolysis, electrocoagulation
  • Why Instead Of SCR Rectifier Use IGBT Rectifier?
  • Compact size, much less size and weight of SCR rectifier, don't need forkli
  • Low Pollution to grid, power factor>0.93
  • Lower cost
  • Less plating time needed, customer feedback 40% shorter time needed for plating
  • IGBT rectifier adopts AC-DC-AC-DC topology, 3 phase AC is firstly converted to DC, which has capacitors for energy charging and discharging, it will suppress power fluctuation. So rectifiers don't need bigger capacity than actual use.
  • Power saving at least 15% than SCR rectifier
  • Less affected by power fluctuation, 100% output, don't need extra capacity
  • SCR rectifier doesn’t have energy buffer function, it is affected directly by the grid power fluctuation, so it always keep much extra capacity.
  • Same reliability as SCR rectifier, long time 24 hours continuous running

Battery Charging Rectifier

Suitable Battery Type
the rectifier is appreciate for battery charging of sealed rechargeable battery, lithium ion battery (li-lon), ni-cd battery etc. battery.

Specialty Of Green Power Rectifier:
  • easy to maintenance and troubleshoot
  • outstanding workmanship
  • high quality, Europe level reliability with much cheaper as compare to Europe.
  • Custom design available
  • local service in India, Germany, Chile, Russia, Iran, Korea, United Kingdom etc. countries
  • Easy remote control, support 4-20mA/0-10V analog signal+dry contacts, communication RS485(MODBUS), Profibus DP, Profinet.
  • Short lead time, standard design
Modular structure
  • flexible current expansion: get different current output
  • compact size: less floor area occupied, modules could be stacked
  • Direct replace spare module for easy repair
  • Soft start/stop available on request
  • High reliability: module independent running, one module break down won't affect others, whole rectifier continue running
  • Easy to install,maintain and replace direct plug-in and plug-out
  • Cathode Protection Rectifier

Introduction Of Cathode Protection

The cathodic protection (CP) is a technique used to control the metal surface by making the cathode of an electrochemical cell. This simple technique of protection connects the metal to be secure to a more easily corroded “sacrificial metal” to act as the anode. By this technique the sacrificial metal then corrodes instead of the protected metal. For the construction such as long pipelines, where passive galvine cathodic protection is not adequate, an external DC electrical power source is used to provide adequate current.

The cathodic protection systems protect a wide range of metallic structure in different environments. Common application are storage tanks such as home water heaters, steel pier pipe, steel water or fuel pipeline, offshore oil platforms and onshore oil well casings, offshore wind farm foundations, structure and metal reinforcement bars in concrete buildings. Another important application is in galvanized steel, in which a sacrificial coating of zinc on steel parts protects them from rust.

Why To Use IGBT Rectifier Instead Of SCR Rectifier?

  • Low maintenance
  • Small size, light weight, in far areas, don’t need crane truck, like heavy oil-cooled SCR rectifier which is difficult and expensive.

What Is Special Of Green Power Rectifier?

  • Compact Size, Light Weight, Modular Structure.
  • Great Workmanship
  • Easy Maintenance And Troubleshoot
  • High Quality, Europe Level Reliability With Much Cheaper Price Than Europe
  • Digital Control, High Accuracy For More Than 15 Years, Fast Responding Time
  • Automatic Self Fault Detection And Display
  • Easy Remote Control, Support 4-20ma/0-10v Analog Signal+Dry Contacts, Communication Rs485(Modbus), Profibus Dp, Profinet.
  • Local Service In India, Germany, Chile, Russia, Iran, Korea, United Kingdom Etc. Countries
  • Custom Design Available

Types Of Cathode Protection Types

  • 50A 50V
  • 100A 100V

Main Specification

  • Input voltage: 3 phase 4 line, 220V, 380V, 415V, 480V
  • Input voltage protection range: +/-10%
  • Cooling method: Water cooling, forced air cooling, natural cooling
  • Power factor:>0.93
  • Efficiency: >92% at rated output
  • Regulation range: 0-100%
  • Duty cycle: 100% continuous running
  • Control mode: constant voltage, constant current
  • Accuracy: <1%
  • Ambient temperature: Max. 40℃
  • Elevation: <4000m


GREEN POWER CO. LTD. All Rights Reserved.(Terms of Use)
Developed and Managed by Infocom Network Ltd.
