Digital Power Supply

Digital Power Supply
Send Inquiry
Product Code : 10
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • FOB price USD ($)
  • Price Range
  • 1460.00 - 1700.00 USD ($)
Product Specifications
  • Output Current
  • 1000 Ampere (amp)
  • Rated Power
  • 10KW
  • Rated Current
  • 0-1000 Ampere (amp)
  • Output Type
  • Single
  • Application
  • electroplating
  • Phase
  • Single Phase
  • Noise Level
  • <60 db
  • Output Power
  • 10KW Watt/Volt ( w/v)
  • Input Voltage
  • 340,380,415,440,480 Volt (V)
  • Output Voltage
  • 12 Volt (V)
  • Efficiency
  • 90%
  • Interface Type
  • RS485, 0-10V;4-20ma
  • Operation Type
  • HMI
  • Storage Temperature
  • 30-45 Planck temperature (Θ)
  • Color
  • Grey
  • Weight
  • 75 Kilograms (kg)
  • Dimension(L*W*H)
  • 785*480*360 Millimeter (mm)
  • Warranty
  • 1 year
Product Description

Application and characteristics

Our IGBT rectifiers have been widely used for application of plating, electroplating. According to the requirements of electro plating process, the rectifiers of DC power supply can complete its control functions.

Our company plating rectifier characteristics:

Plating rectifier with small size, light weight: the size and weight just about 1/6-1/10 of silicon control rectifier, which it is very convenient for you planning, expansion, moving, maintenance and installation.

Energy-saving effect: under normal circumstances, compared with silicon control rectifier equipment can improve efficiency above 10% or even more, compared with silicon control rectifier at the condition of load rate less than 70% can improve efficiency by 30% and even above.

Plating rectifier high output stability: because the system response speed ,it has strong adaptability to electricity network and load changes, the output accuracy can be better than 1%. High efficiency switching power supply, therefore high precision control, then help to improve the quality of electro plating products.

Rectifiers specification and parameter

Item

Specification

Type

1000A12V IGBT high frequency rectifier

Structure

Modular design

Working duty

100% 24 hours continuous running

Input voltage

380V/415VAC/440VAC ,3phase 4 line,50-60Hz

Rated output voltage

12V( 6V/8V/10V/15V/18V/24V/36V/48V optional or according to customers' request)

Rated output current

1000A(we also have rectiriers for 30A-40000A)

Output range

0-100%

Control Accuracy

±1%

Power factor

0.94

Efficiency

typical 90% at rated output, with relation with output voltage

Control mode

constant current/constant voltage

Operation mode

Local, Remote

Color

RAL7035 or custom design

Insulation grade

B

Current ripple

Standard 10% of rated output current at constant current mode

Cooling

Air cooling

Protection class

IP32

HMI

Touch Panel on control box

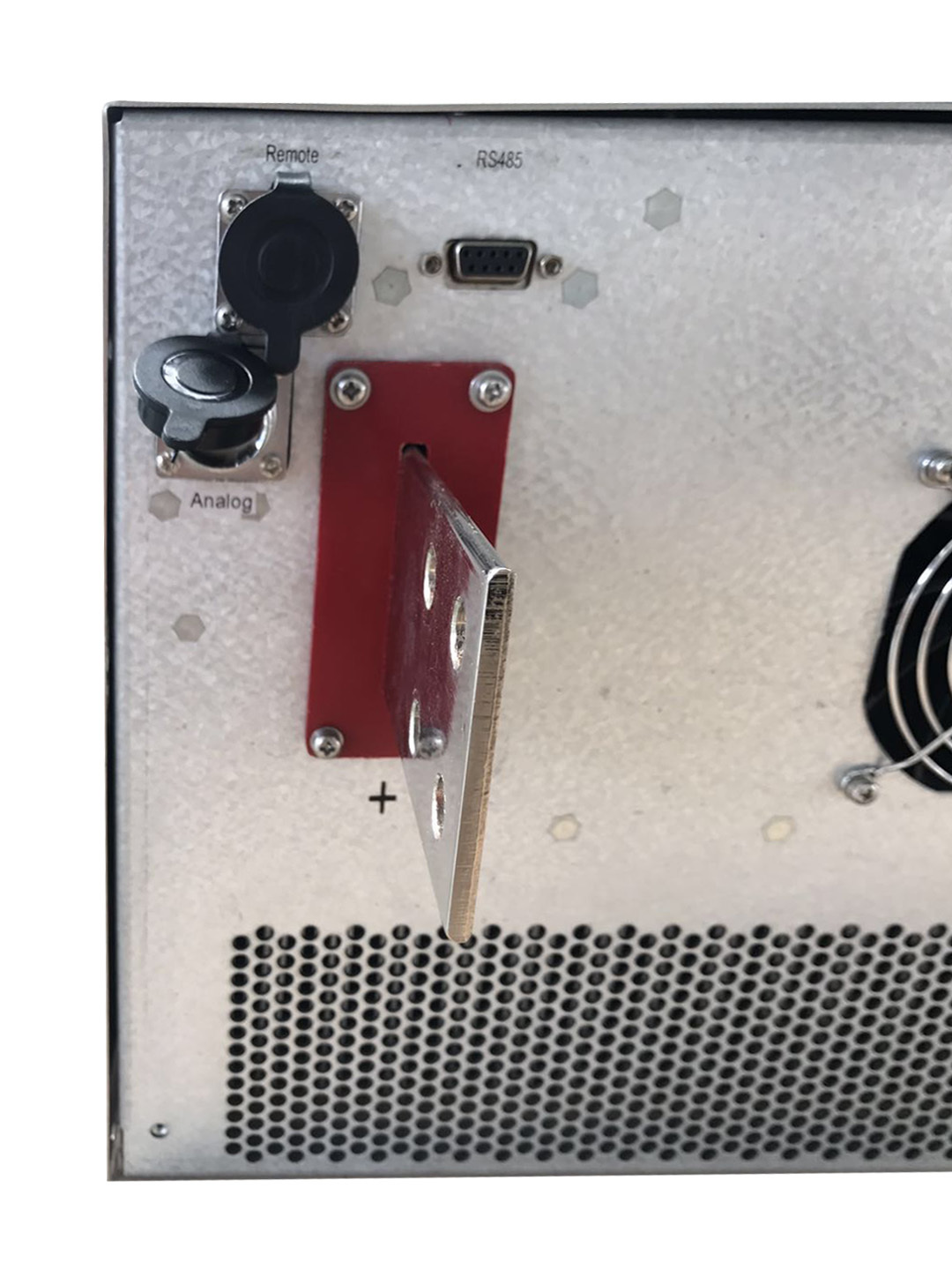

Remote control interface

RS485, 4-20mA, 0-10V, Profibus, Profinet available

Alarm type

Audible and visual alarm

Protections

Over/under input voltagep rotection 380V+-10%

DC Output over current protection @rated output current +100A

DC Output over voltage protection @rated output voltage +2V

Over heat protection >75

IGBT Driving protection

Ambient temp

Max. 40, derated operation up to 50

Altitude

2000m altitude. De-rated operation if higher

Humidity

Max. 90% RH, non-condensing

Outline Size

L*W*H(mm): 450*700*310mm(L*W*H) including output copper bus bar

Net Weight

about 75kg

Functions

Soft start function

Anticorrosion treatment

Digital DSP control(USA TI DSP Chip)

Protection type automatic display

History date record function

History protection record function

Waveform function

Protection shield function

Keep last time setting mode and output value when power-on again

In case of power failure, after power resuming, the rectifier could switch on automatically and start rising up to set current

Process curve setting and auto running

Our rectifiers satisfy customers

Our company 1000A rectifier power supply working well in India customer's plating machine workshop.

Specification:

  • Input voltage: 3 Phase, 50Hz, 380V
  • Output current: 0-1000A adjustable
  • Output voltage: 0-12V.

The plating power supply working well, the customer is satisfied with our rectifier, and says will purchase more and mor

Trade Information
  • FOB Port
  • Shanghai,Tianjing,Beijing,Guangzhou
  • Supply Ability
  • 600sets Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Polywood package
  • Main Export Market(s)
  • Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Certifications
  • CE,ISO9001
