Home » Products » Power Rectifiers » High Frequency Dc Pulse Reverse Rectifier

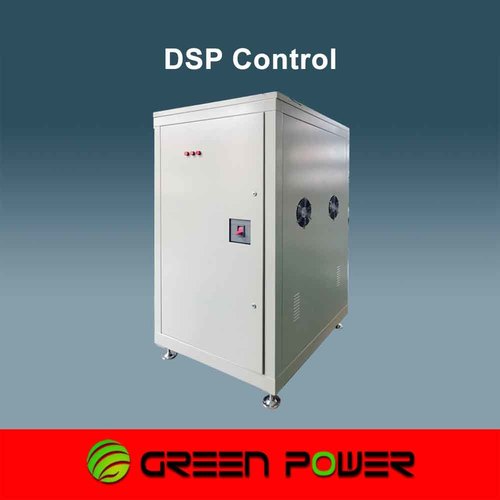

High Frequency Dc Pulse Reverse Rectifier

High Frequency Dc Pulse Reverse Rectifier
High Frequency Dc Pulse Reverse Rectifier
Send Inquiry
Product Code : 77
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 3
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 7650.00 - 9350.00 USD ($)
Product Specifications
  • Product Type
  • Bridge Rectifier
  • Application
  • water treatment;electroplating
  • Input Voltage
  • 340,380,415;440;480 Volt (V)
  • Output Current
  • 5000 Ampere (amp)
  • Output Voltage
  • 12 Volt (V)
  • Modular
  • Modular
  • Interface Type
  • RS485,0-10V;4-20ma
  • Operation Type
  • HMI
  • Warranty
  • 1 year
Product Description

Technical Parameters



Customer proved, using our IGBT switch mode power supply unit:

40% less processing time 20% above better plating/electrolysis processing quality



Electroplating rectifier 300a main parameters:

Reference value


Input line voltage(V)

380V 415V 480V 220V

Voltage Fluctuating Range

±10%

Input Frequency(Hz)

50Hz/60hz

Highest ambient temperature

35 °C 40 °C 45°C

Application

Electroplating electrolysis anodizing

heating others

Polarity Reverse Required

Yes No(default)

Rated Output Current(A)

5000A (0-1000A adjustable)

Rated Output Voltage(V)

10V (0-12V adjustable)

Rated Output Power(kW)

36kW

Power Efficiency(Full Load)

90%

Accuracy

<0.5%

Power Factor(Full load)

0.93

Cooling Method

Water cooling Forced air cooling

Timer

Needed Not needed(default)

Working Mode

Continuous

Protection Function

Input voltage protection, cooling water protection,

overheat, output over current, output over voltage

Local control and display

Touch screen Digital meters&buttons

Don't need local control

Remote control and display

Remote control box External SPS or IPC

Don't need remote control

Communication Protocol

Profibus Profinet Modbus 4-20mA/0-10V



Advantage

Rich experience for industrial applications Mature and advanced technology, R&D of power supply for 20 years Europe quality, high reliablity and high stability Reliable, efficient and robust, Maximum efficiency and reliability and trouble-free integration, give you technical performance that boosts productivity and allows a high return on investment on your plant High performance price ratio, optimised power supply design& reasonable power supply price Product easy operation and quick troubleshooting Efficient service

We could bring you Europe quality&China price.

  • Perfect matching process demand, excellent performance;
  • Competitive price than Europe and USA brands;
  • Easy operation by touch panel, remote PLC control through communication;
  • Quick troubleshooting and repair to shorten stop time;



Related Product

DC output

600A

700A

1000A

1500A

2000A

3000A

5000A

6000A

8000A

10000A

12000A

15000A

20000A

Others

12V

Input AC 380V, 220V, 415V, 480V

15V

Water/Forced Air Cooling

20V

Reversing Polarity

60V

Local/Remote Control

100V

CC/CV

0thers

Timer



Packaging & Shipping

All the goods will be packed in carton or wooden case or bag carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .



The package will be shipped by DHL, FedEx, UPS,TNT or EMS Please choose one of them, after we shipped the parcel, we'll fill in the tracking number and inform you by E-mail. Pls write the correct address and telephone number when you make orders. So we can delivery the product for you.

  • 6weeks after you payment.
  • Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping.
  • you may choose our shipping partner or your own partner.
Trade Information
  • FOB Port
  • Shanghai,Tianjing,beijing,Guangzhou
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 300 Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • polywood package
  • Main Export Market(s)
  • Middle East, Western Europe, South America, North America, Australia, Asia
  • Certifications
  • CE
