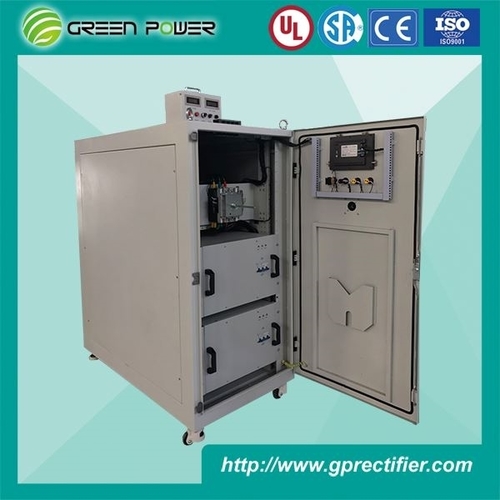

IGBT 5000A 12V Hard Chrome Plating Rectifier

IGBT 5000A 12V Hard Chrome Plating Rectifier
IGBT 5000A 12V Hard Chrome Plating Rectifier
Send Inquiry
Product Code : 74
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 3
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 1560.00 - 1780.00 USD ($)
Product Specifications
  • Product Type
  • Other
  • Application
  • electroplating
  • Input Voltage
  • 340,380,415;440;480 Volt (V)
  • Output Current
  • 1000 Ampere (amp)
  • Output Voltage
  • 12 Volt (V)
  • Modular
  • Modular
  • Interface Type
  • RS485,0-10V;4-20ma
  • Operation Type
  • HMI
  • Weight
  • 75 Kilograms (kg)
  • Warranty
  • 1 year
Product Description

We are offering IGBT 5000A 12V hard chrome plating rectifier, this Power Supply used for chrome plating is our strong point, and we have rich experiences in this industry and exported more than thousands of units to more than 40 countries. We try our best service for you.


Advantages of Hard Chrome Plating Rectifier


IGBT 5000A 12V hard chrome plating rectifier has below technology advantage:


  • Digital DSP control

  • Modular structure, compact size, light weight

  • Touch panel HMI, show protection type automatically in case of any protection


Technical parameters


Parameters name

Parameter value

Input voltage

3 phase AC 380V- 415V, 50Hz

Output DC current

Rated 5000A

Output DC voltage

Rated 12V

Protection class

Up to IP30

Efficiency

>90% @ rated output

Power factor

≥0.93 @ rated output

Ambient temp.

Max. 50°C

Cooling

Water or forced air cooling

Regulation range

Step less at constant voltage or current 0-100%

Control precision

Voltage/current≤0.5%

Duty ratio

Continuous operation at rated loads up to 2000m altitude

Control mode

Constant current/voltage/power

Operation mode

Local/remote

Relative humidity

15%-85%RH

Communication interface

RS485, 0-10V/4-20mA

Communication protocol

MODBUS,Profibus, Profinet, TCP/IP

Process programming

Available

Polarity reversal

Available

Module separate output

Available

Parallel connection module number

No limit

Remote control box

Available

Spare parts

Available

HMI

Touch panel or digital meters/buttons

Package

Plywood packing for export


29 sets rectifier will be shipped. All the goods will be packed in a carton or a wooden case or a bag carefully. We make sure that our entire product is complete when it arrives. We guarantee that all the packaging will be intact when it reaches the destination.


The package will be shipped by DHL, UPS, TNT, FedEx, or EMS Please choose any one of them, after we ship the parcel, we will fill in the tracking number and inform you by E-mail. Please do write the correct address and telephone number when you make an order so, we can deliver the product for you.

Trade Information
  • FOB Port
  • Shanghai,Tianjing,beijing,Guangzhou
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 300 Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • polywood package
  • Certifications
  • CE
