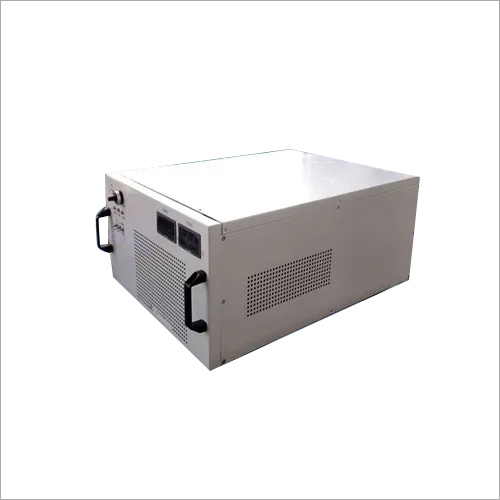

Rectifier power supply

Rectifier power supply
Rectifier power supply
Send Inquiry
Product Code : 69
Brand Name : Green Power
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 1000.00 - 1250.00 USD ($)
Product Specifications
  • Noise Level
  • <65 db
  • Application
  • electroplating
  • Current Range
  • 12 Volt (V)
  • Working Temperature
  • 35-50 Celsius (oC)
  • Output Current
  • 1000 Ampere (amp)
  • Output Type
  • Single
  • Phase
  • Single Phase
  • Product Type
  • IGBT rectifier
  • Output Power
  • 12KW Watt (w)
  • Input Voltage
  • 340,380,415,440,480 Volt (V)
  • Efficiency
  • 90%
  • Material
  • IGBT,driving board,Control board,fan
  • Storage Temperature
  • 30-45 Celsius (oC)
  • Weight
  • 75 Kilograms (kg)
Product Description

Full Specifications:

The rectifier is suitable for one year warranty india local service 500A 12V plating transformer rectifier with igbt
This rectifier is suitable for electro chemistry process, such as electroplating, electrolysis, anodizing, electro winning, electro refining etc. to provide stable DC power supply.

This rectifier adopts high frequency IGBT as semiconductor component and PWM modulation technology. It is modular structure design, easy to expand output current capacity, several rectifier modules could be connected in parallel and mounted in stack up to 20 modules to make more current single rectifier. has independent power modules, each module could output independently or output in parallel connection.



AC Input

Input AC phase

three phase


Input line voltage(V)

380AC

+-10%

Input frequency

50HZ/60HZ

0-100% of rated value


DC Output

Rated output

Constant current

Constant voltage

0-100% of rated value

Accuracy

<1%


Electric feature

Application

Electrochemistry

Power factor

>0.93

Cooling method

Air cooling


IP degree

IP30

working mode

continous

Alarm type

Audible and visual alarm

Ripple

<10%


Customer benefits



For corrosion by chemical, we have good anti-corrosion solution to that:

  • Powder coated cabinet
  • All PCB assemblies is humi-sealed/lacquer coated
  • Partially sealed design to protect critical electronics from harsh environment


Stainless steel bolts, nuts and screws etc.

  • Water cooling with higher IP grade as IP54.
  • Wide 3 phase AC input range from 340-460V to meet India voltage fluctuation condition
  • Design for ambient temperature up to 50 degree.
  • Provide local service engineer to do after sale service and installation
  • Spare parts available for whole life running
  • ECO is less intelligent, with basic functions and manual operation by potentiometer and display by digital meters, with lower cost


Green Power application filelds

Green Power main application is electroplating, aluninum anodizing, electrolysis, electro winning, water treatment, battery charging and etc



Main Features

  • Same ability
  • Less plating time needed
  • Compact size and less weight
  • Low cost
  • Low pollution to grid and high power factor



Packaging

  • Size : 123 (L) * 456 (W) * 789 (D)
  • Weight 1.2 T



Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter we will use pe film for packing or pack it according to customers special requ

Trade Information
  • FOB Port
  • Shanghai,Tianjing,beijing,Guangzhou
  • Supply Ability
  • 200 Per Month
  • Delivery Time
  • 6-8 Week
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Polywood package
  • Certifications
  • CE
